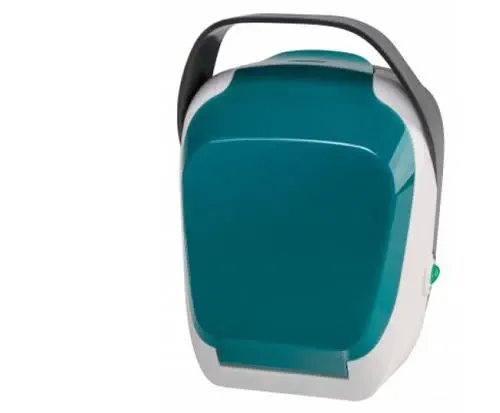

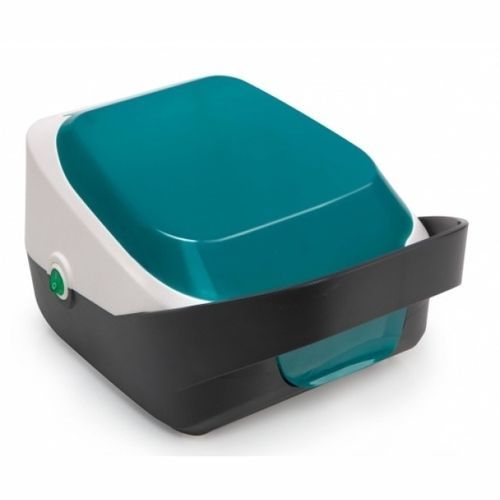

Pneumatic nebulizer Evolution Description
Pneumatic nebulizer Evolution is the latest design within CA-MI range of professional piston compressor nebulizers for aerosoltherapy. Indicated for intensive treatments in clinics or hospitals, its innovating design includes a large compartment for storage of accessories and medications, along with a convenient handle for displacement. Efficiency of treatments is ensured by the powerful compressor approved for non-stop operation and the new breath enhanced HI-4 speed jet nebulizer with valve system increasing the speed of nebulization up to 100%. Position of the masks is adjustable by rotation allowing nebulization to bedridden patients or children.
- 1 x HI-4 Nebulizer
- 1 x Mouthpiece
- 1 x Nosepiece (non invasive)
- 1 x Adult mask with elastic strings
- 1 x Child mask with elastic strings
- 1 x Air tube
- 1 x Air Filter Compressor
- – Oiless and maintenance
- -free piston pump
- Power feeding- 230V / 50Hz
- Max pressure – 3.0 bar 43.5 psi 300 kPa
- Operating pressure – 0.95 bar 13.7 psi 95 kPa
- Operating air flow – 8 l/min
- Neb-rate with 2ml
- NaCI 0.9% solution –
- position A (closed) 0.40 ml / pos. B 0.60 ml / pos. C 0.70 ml / pos. D 0.80 ml
- Duty cycle – Non-stop operation
- Warranty – 2 years
Characteristics
-
-
- Type Pneumatic
-
- Applications for general purposes
-
- Accessories with compressor, with mask
-
- Flow 16 l/min (4.226753 us gal/min)
-
- MMAD 3.3 µm, 4.1 µm, 4.2 µm
-
- Noise level 60 dB
-
- Length 20 cm (7.87 in)
-
- Width 28 cm (11.02 in)
-
- Height 15 cm (5.91 in)
-
-
- Weight 2 kg (4.41 lb
- )
-
-
