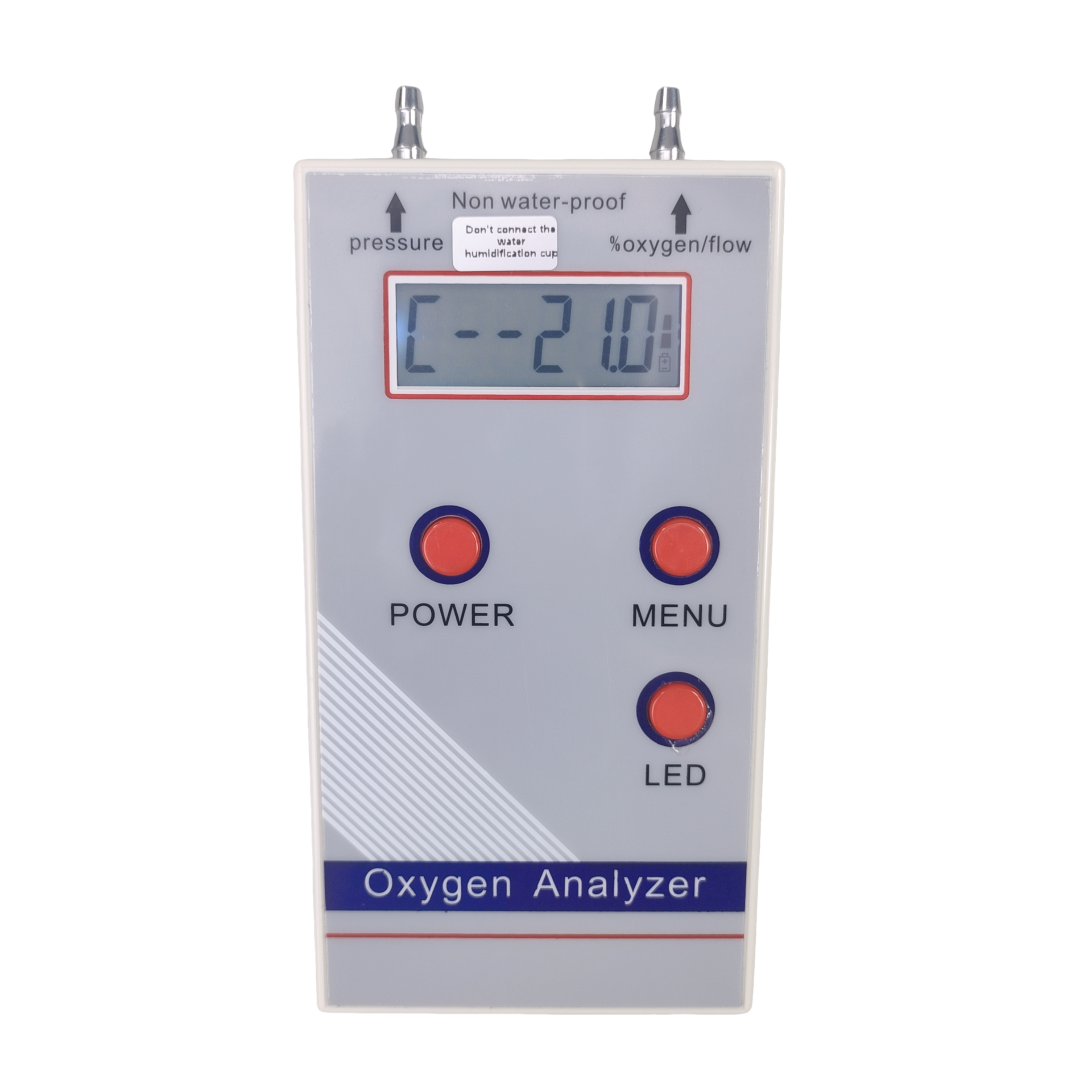

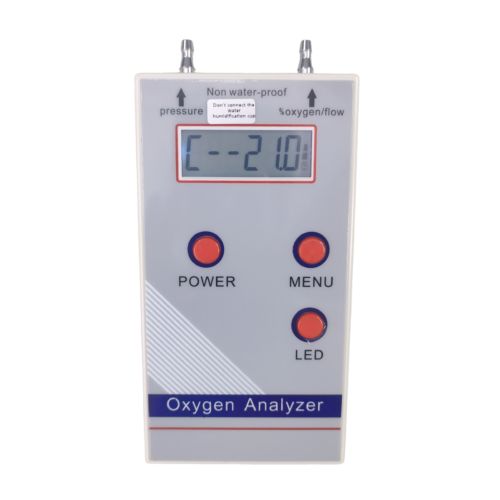

Handheld Ultrasonic Oxygen Analyzer RP-01

AED750.00

The Handheld Ultrasonic Oxygen Analyzer RP-01 is a portable and highly accurate medical oxygen analyzer designed to measure oxygen concentration quickly and reliably. Using advanced ultrasonic sensing technology, it is ideal for testing oxygen concentrators, ventilators, anesthesia machines, and medical gas systems. Its compact design, easy operation, and fast response make it suitable for hospitals, clinics, biomedical engineering departments, and healthcare facilities. Available from Bionex Medical Equipment UAE.

Order Whatsapp

Specifications Handheld Ultrasonic Oxygen Analyzer RP-01

The RP-01 is a portable and rechargeable, ultrasonic handheld oxygen analyser, designed to accurately measure oxygen concentration, flow measurements and gas pressure from PSA oxygen concentrators. The sensor does not need to be recalibrated.

Supplied with power supply, silicone tube & filter.

Key Features

Measures oxygen concentration, flow rate, and pressure
Ultrasonic technology (no recalibration required)
Automatic power off
Backlit LCD display
Lightweight (300 g)
Rechargeable 12V supply

Measurement Capabilities (Flow)

Range: 0 to 10.0 L/min
Input: PSA oxygen concentrator output only
Resolution: 0.1 L/min
Accuracy: ± 5% F.S. (± 0.2 L/min.)

Measurement Capabilities (Concentration)

Range: 21% to 95.6% O2
Input: PSA oxygen concentrator output only
Resolution: 0.001
Accuracy: ± 1.5%

Measurement Capabilities (Pressure)

Range: 0-100Kpa
Resolution: 1Kpa
Accuracy: ±1%FS

Operation

Display Modes: F (Flow), C (Concentration), P (Pressure)
Startup Time: ~8 seconds
Auto-Off: ~3 minutes

Power & Battery

Power Supply: 12V 1A
Battery: 3150 mAh
Charging Indicator Included

Physical Parameters

Weight: 300 g
Dimensions: 17.6 × 9.5 × 3.5 cm
Operating Temperature: +5°C to +55°C

Safety Notes

Do not calibrate with 100% oxygen
Avoid oil contamination
Keep device dry
