CONTEC CMS Series Patient Monitor

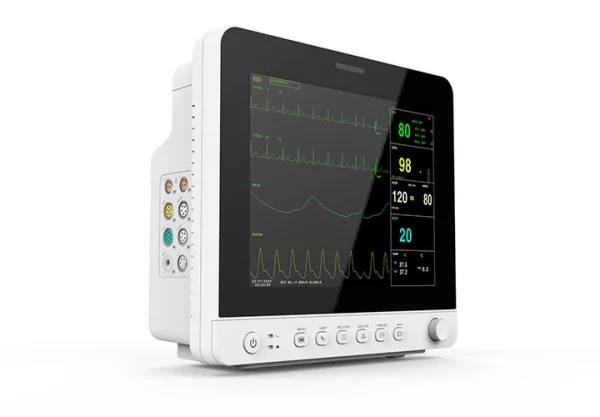

CONTEC CMS8000 Patient Monitor Machine
The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100 V-240 V ~ 50 HZ/60 Hz, adopts 12.1” color TFT displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.
1)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
2)All-round monitor for adult, pediatric and neonate.
3)With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.
4)Finish all operations by keys and knobs.
5)Maximum 8-channel waveform synchronous display.
6)Display 7-lead ECG waveform on one screen, cascade ECG waveform display
7)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
8)Heart rate variability (HRV) analysis function
9)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
10)Review for 72 alarm events of all parameters and 60 arrhythmia alarm events.
11)Drug concentration calculation and titration table functions.
12)One-touch printing of trend graph
13)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
14)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
15)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).
16)Equipped with 12.1”HD LCD screen,the value is clearer,and the remote view is more convenient.
Functions
| Standard Parameters | ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP |
| â—†ECG | Heart rate(HR) |
| ECG waveform | |
| Arrhythmia and ST-segment analysis | |
| â—†RESP | Respiration rate(RR) |
| Respiration waveform | |
| â—†SpO2 | Oxygen saturation(SpO2) |
| Plethysmogram(PLETH) waveform | |
| Pulse rate(PR) | |
| Bar graph | |
| â—†NIBP | Systolic pressure(SYS), Diastolic pressure(DIA) |
| Mean pressure(MEAN) | |
| â—†TEMP | T1, T2, TD |
| â—†IBP(optional) | CH1: SYS, DIA, MAP |
| CH2: SYS, DIA, MAP | |
| IBP waveform | |
| â—†CO2(optional) | EtCO2 |
| InsCO,：Inspired Minimum CO2 | |
| AwRR:Air Way Respiration | |
| It has abundant functions, such as audible and visual alarm,trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc. | |
Accessories
- Adult fingertip SpO2 probe (5-pin)
- Adult NIBP cuff
- NIBP extension tube
- ECG lead cable
- ECG electrode
- Temperature probe
- Power cord
- User Manual
Physical Charasteristic
Dimension: 314 mm(L) × 145 mm(W) × 264 mm(H);
Weight: 3.9 Kg.
