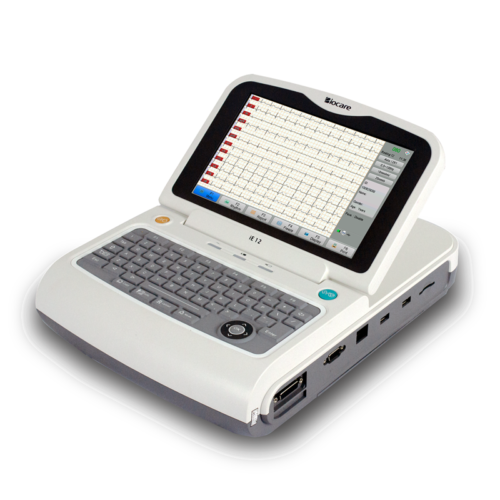

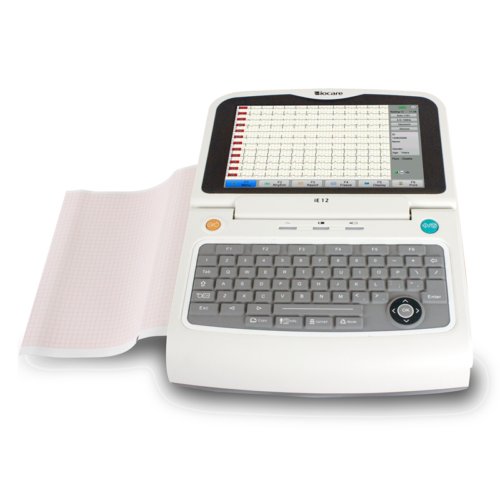

Biocare iE 12 Digital Electrocardiograph  (ECG Machine)

The Biocare iE 12 12-Lead Digital Electrocardiograph is an advanced diagnostic ECG system engineered to deliver fast, accurate, and reliable cardiac assessments. Designed for professional healthcare environments, it simultaneously acquires all 12 ECG leads, helping clinicians evaluate heart rhythm abnormalities and cardiovascular conditions efficiently.

With its intuitive 8.9-inch high-resolution touchscreen, integrated thermal printer, intelligent ECG analysis software, and multiple data storage options, the Biocare iE 12 streamlines clinical workflow while providing dependable diagnostic performance. The device supports adult and pediatric patients and offers multiple recording formats and connectivity options for modern healthcare facilities.

Main features:

• Input circuit: High security floating input.

• Leads: 12 standard leads, simultaneous acquisition.

• A/D Conversion: 24-bit resolution.

• Sampling frequency: 1000 Hz.

• Input impedance: > 50 MΩ.

• Patient leakage current: < 10 μA.

• Time constant: ≥ 3.2 s.

• Frequency response: 0.05 Hz – 250 Hz.

• Noise level: < 15 μVp-p.

• Sensitivity: 2.5, 5, 10, 20, 10/5, 20/10 mm/mV.

• Calibration voltage: 1 mV ±3%.

• CMRR (Common Mode Rejection Ratio): > 100 dB.

• Polarization voltage: ± 500 mV.

• Integrated filters: AC, ADS, EMG.

• Printing modes: Automatic, manual, and rhythm.

• Print rate range: Selectable between 30 and 300 seconds.
